MACHINE & MEASURING EQUIPMENT
WIRIYA PRECISION PART CO.,LTD.
Equipment List
| NO | รหัสเครื่อง | ชื่อเครื่องจักร | ชื่อผู้ผลิต | Spindle | X | Y | Z | แผนกที่ใช้ |
|---|---|---|---|---|---|---|---|---|
| 1 | MW-01 | WIRE CUT | SODICK | - | 570 | 370 | 350 | WIRE CUT |
| 2 | MW-02 | WIRE CUT | DK7735-GOLD SAN | - | 500 | 600 | 1000 | WIRE CUT |
| 1 | ML-01 | CNC-Lathe | GOODWAY GA-3300L | 12" | 450 | - | 600 | CNC-Lathe |
| 2 | ML-02 | CNC-Lathe | MORI SEIKI SL-15 | 6" | 220 | - | 400 | CNC-Lathe |
| 3 | ML-10 | Lathe | TAKISAWA | 10" | 180 | - | 450 | Manual |
| 4 | ML-11 | Lathe | TAKISAWA | 8" | 400 | - | 1,000 | Manual |
| 5 | ML-12 | CNC-Lathe | MIYANO | 5" | 190 | - | 200 | CNC-Lathe |
| 6 | ML-13 | CNC-Lathe | MIYANO | 5" | 190 | - | 200 | CNC-Lathe |
| 7 | ML-14 | CNC-Lathe | IKEGAI | 15" | 600 | - | 1,400 | CNC-Lathe |
| 8 | ML-15 | CNC-Lathe | NAKAMURI-TOME(TMC-2) | 8" | 250 | - | 300 | CNC-Lathe |
| 9 | ML-16 | CNC-Lathe | HASEGAWA(T03-0383) | 75 | - | 150 | CNC-Lathe | |
| 10 | ML-17 | CNC-Lathe | NAKAMURI | 100 | - | 200 | CNC-Lathe | |
| 11 | ML-18 | CNC-Lathe | DAINICHI | 24" | 1,050 | - | 4,000 | CNC-Lathe |
| 1 | MM-01 | CNC Milling | EXTRON-4 Axis | A =360 | 1200 | 600 | 600 | CNC Milling |
| 2 | MM-02 | CNC Milling | DAHLIH-3 Axis | - | 600 | 400 | 500 | CNC Milling |
| 3 | MM-08 | CNC Milling | ENSHU-3 Axis | - | 500 | 300 | 300 | CNC Milling |
| 4 | MM-09,16-17 | CNC Milling | VICTOR VCENTER-102A_WA-1350 | - | 1000 | 600 | 560 | CNC Milling |
| 5 | MM-10 | CNC Milling | Marufuku DUC-125 | 1500 | 300 | 1300 | CNC Milling | |
| 6 | MM-11 | CNC Milling | KAFO MODEL:BMC-4127 | 4000 | 2800 | 900 | CNC Milling | |
| 7 | MM-12 | CNC Milling | KAOMING MODEL: KMC2000SD | 2230 | 1400 | 700 | CNC Milling | |
| 8 | MM-13 | CNC Milling | KAFO MODEL:BMC-3015 | 3000 | 1500 | 700 | CNC Milling | |
| 9 | MM-14 | CNC Milling | ROKO-ROKU 6000RPM | 765 | 410 | 410 | CNC Milling | |
| 10 | MM-15 | Shaping | HUDONG | W=100mm.L=500mm. | Manual | |||
| 11 | MM-04 | Milling | SHISUOKA | - | 800 | 300 | 400 | Manual |
| 12 | MM-06 | Milling | STM2V | - | 1000 | 300 | 300 | Manual |
| 1 | MG-01 | Surface Grinding | OKAMOTO | 14" | 600 | 300 | 400 | Grinding |
| 2 | MG-02 | Surface Grinding | OKAMOTO | 14" | 600 | 300 | 400 | Grinding |
| 3 | MG-07 | Surface Grinding | BROW&SHAPE | 6" | 400 | 150 | 300 | Grinding |
| 4 | MG-03 | Auto Cylindrical Grinding | PALMARY | 14" | 300 | - | 400 | Grinding |
| 5 | MG-04 | Centerless Grinding | PALMARY | 12" | 40 | - | 150 | Grinding |
| 6 | MG-05 | Cylindrical Grinding | SUPERTEC | 5" | 200 | - | 500 | Grinding |
| 7 | MG-06 | Cylindrical Grinding | TOYODA | 14" | 350 | - | 600 | Grinding |
| 1 | MS-01 | CUTTING | AMADA | - | 300 | - | 300 | Manual |
| 2 | MS-02 | CUTTING | EMERSON | - | 200 | - | 100 | Manual |
| 3 | MS-03 | ELECTRIC WELDING | LONG WELL | Manual | ||||
| 4 | MS-04 | CUTTING | AMADA/HA-400(AUTO) | 400 | 550 | Manual | ||
| 1 | EDM-01 | EDM | SODICK | - | 300 | 300 | 250 | EDM |
| 1 | CMM-01 | Manual CMM | MISUTOYO TAA096-42MPA | QC/QA | ||||
| 2 | ARM-1 | ARM | FARO | QC/QA | ||||
| 3 | PP-1 | PROFILE PROJECTER | Model :PJ-H300F SERIAL NO.3K0107 | QC/QA | ||||
Equipment List
| หมวด | รุ่น / รายการ | ช่วงเดินทาง (X×Y×Z) | จำนวน |
|---|---|---|---|
| CNC Lathe | GOODWAY GA‑3300L (Chuck 12", 4000 rpm) | — / Z 500 mm | 1 |
| CNC Lathe | IKEGAI TU30 (Chuck 15") | Z 1500 mm | 1 |

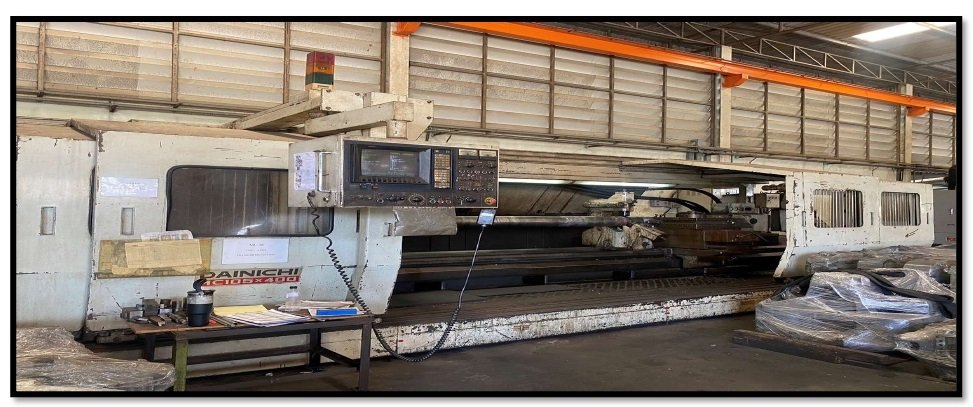

| CNC Lathe | DAINICHI MC105×400 | — | 1 |
| Machining Center | VICTOR VCENTER‑102A | 1200 × 700 × 600 mm | — |
| Machining Center | DAHLIH | 720 × 430 × 510 mm | 1 |
| Wire Cut | SODICK AQ537L | 570 × 370 × 350 mm | 1 |
| Wire Cut | DK7745‑IDDA | 500 × 600 × 1,000 mm | 1 |
| Surface Grinding | OKAMOTO ACC63ST | 600 × 300 × 400 mm | 2 |
| Cylindrical Grinding | PALMARY | 200 × 400 mm | 1 |
| Centerless Grinding | PALMARY PC‑12 | 40 × 100 mm | 1 |
| Double Column | KAFO BMC‑4127 | 4000 × 2800 × 900 mm | 1 |
| Double Column | KAOMING KMC2000SD | 2230 × 1400 × 700 mm | 1 |

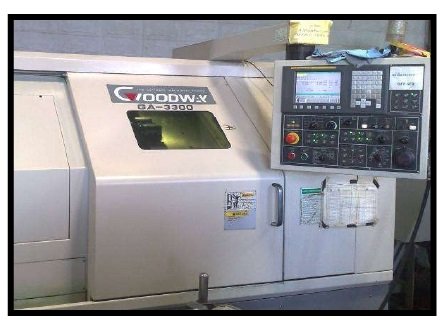

Chuck: 12"
Z axis stroke: 500 mm
Spindle Speed: 4000 rpm
Quantity: 1 Set
High-precision CNC lathe suitable for various shaft and chuck workpieces.
Chuck: 15"
Z axis stroke: 1500 mm
Quantity: 1 Set
Heavy-duty lathe for long workpieces and general turning operations.
Travel (X × Y × Z): 1,050 mm × 0 mm × 4,000 mm
Spindle: 24"
Quantity: 1 Set
Large-capacity machine designed for extra-long components and precision jobs.

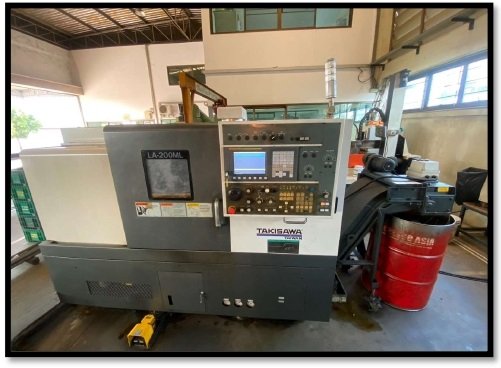

Model TAKISAWA LA200ML
Chuck: 8"
X axis stroke: 200 mm
Z axis stroke: 675 mm
Spindle Speed: 3,200 rpm
Quantity: 1 Set

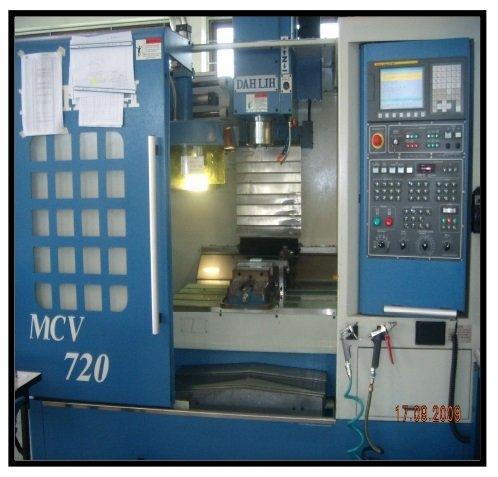

Model DAHLIH
Travel (X × Y × Z): 720 × 430 × 510 mm
Spindle Speed: 8000 rpm
Quantity: 1 Set

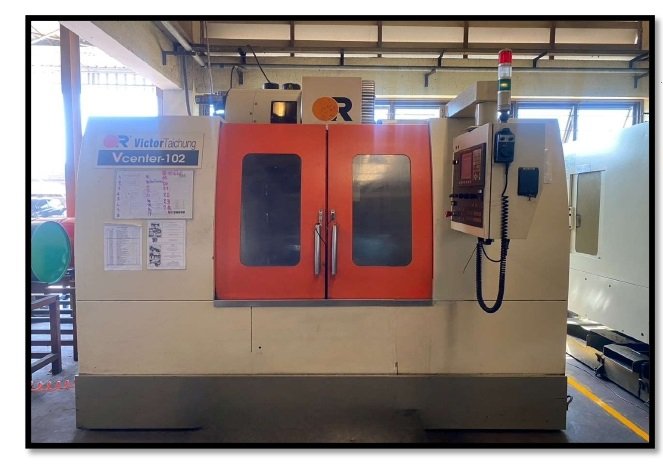

Model VICTOR VCENTER-102A
Travel (X × Y × Z): 1200 × 700 × 600 mm
Quantity: 3 Set
Model OKAMOTO - ACC63ST
Travel (X × Y × Z): 600 × 300 × 400 mm
Quantity: 2 Sets
Model PALMARY
Travel (X × Z): 200 × 400 mm
Quantity: 1 Set
Model PALMARY PC-12
Travel (X × Z): 40 × 100 mm
Quantity: 1 Set

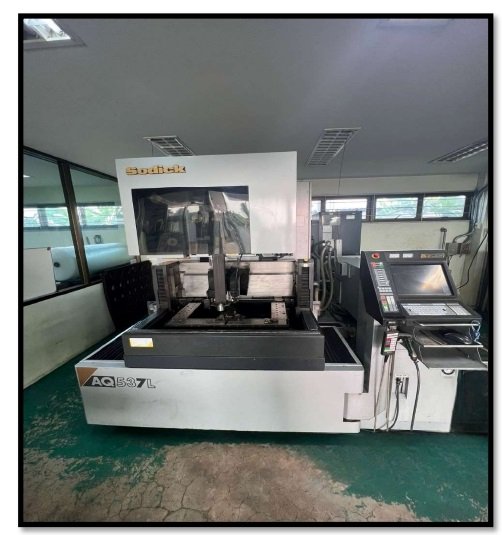

Model SODICK AQ537L
Travel (X × Y × Z): 570 × 370 × 350 mm
Quantity: 1 Set

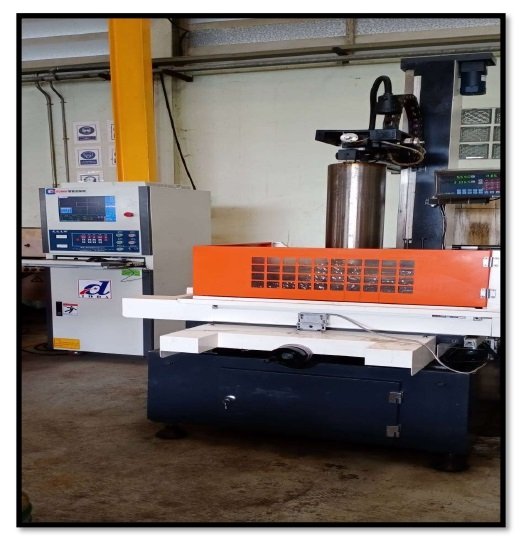

Model DK7745-IDDA
Travel (X × Y × Z): 500 × 600 × 1,000 mm
Quantity: 1 Set
KAFO MODEL: BMC-3015
& MITSUBISHI M80 CONTROLLER
Travel (X × Y × Z): 3000 × 1500 × 700 mm
Quantity: 1 Set

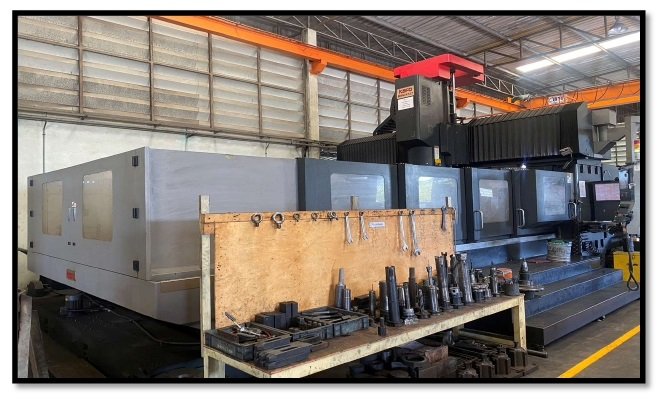

KAFO MODEL: BMC-4127
& MITSUBISHI M80 CONTROLLER
Travel (X × Y × Z): 4000 × 2800 × 900 mm
Quantity: 1 Set

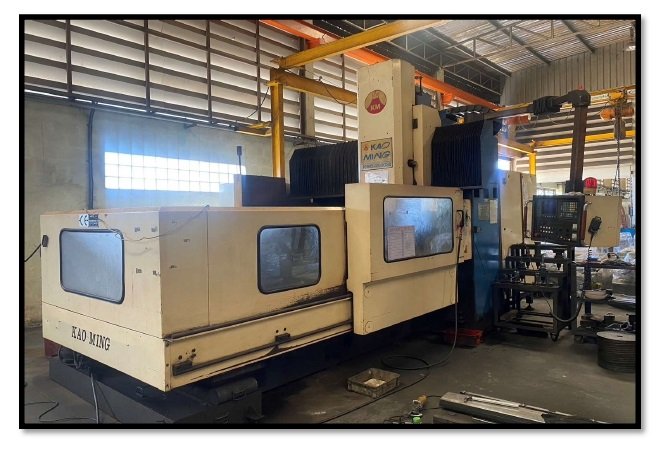

KAOMING MODEL: KMC2000SD
SER.NO.: 27096
Travel (X × Y × Z): 2230 × 1400 × 700 mm
Quantity: 1 Set

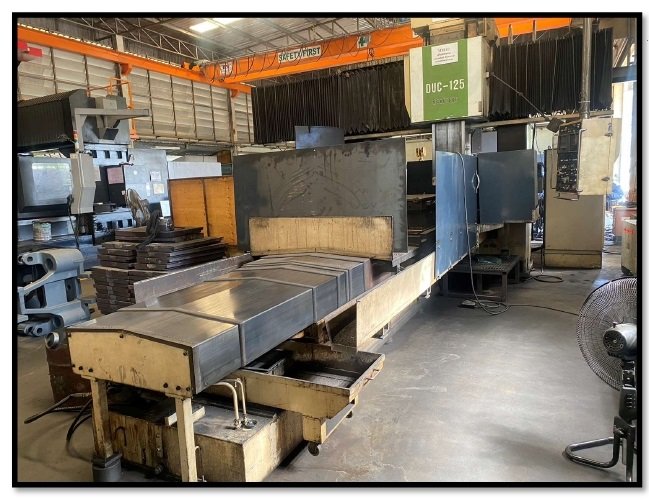

MARUFUKU MODEL: DUC125
Travel (X × Y × Z): 1500 × 3000 × 1300 mm
Quantity: 1 Set
5 TON: 1 Set
3 TON: 1 Set
1 TON: 1 Set
250 KGS: 1 Set
Hand Lift 2 TON: 1 Set

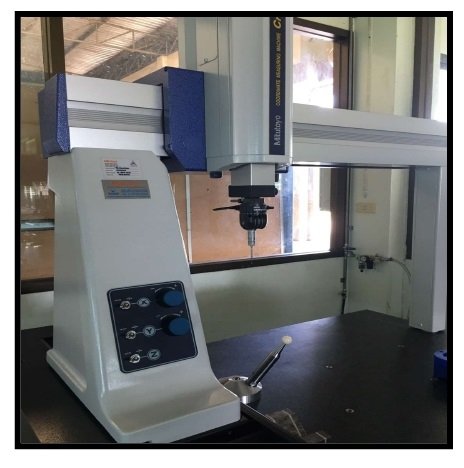

Model: MANUAL V4.2 63TAA096-42MPA
Model: PJ-H300F SERIAL NO. 3K0107
"FARO" – QUANTUM E MAX 2.5
7 AXIS ARM-0030-7FC
Vernier Caliper
Height Gauge
Dial Indicator
Surftest
